Pickleball Paddle Materials & Construction Explained

You ever play with a paddle so bad you feel like you’re swinging a license plate?

Years ago, one of my students showed up with a smooth fiberglass paddle from an Amazon two-pack. The guy had fast hands and decent court sense, but the equipment was giving him very little help. His drops kept floating and he asked me, “Coach, what am I doing wrong?”

I told him, “You brought a butter knife to a gunfight.”

At the time, explaining why was fairly simple. We talked about fiberglass, graphite, carbon fiber, core thickness, and whether the face had useful texture.

That conversation is a lot harder now.

Today I can hand you two paddles that both say T700 carbon fiber on the box and they can feel almost nothing alike. One may have polypropylene honeycomb with perimeter foam. Another may use EPP foam. Another may use MPP foam with carbon lattice structures. Another may have a floating core suspended inside a foam channel. Gearbox can skip conventional honeycomb and foam entirely and build the internal structure from carbon ribs.

Then we have peel-ply texture, applied grit, embedded grit, ceramic-like durable surfaces, carbon/aramid hybrids, fiberglass reinforcement, different foam densities, different layups, thermoforming, cold pressing, unibody frames, edge foam, carbon frames, and whatever trademark somebody’s marketing department invented Tuesday morning.

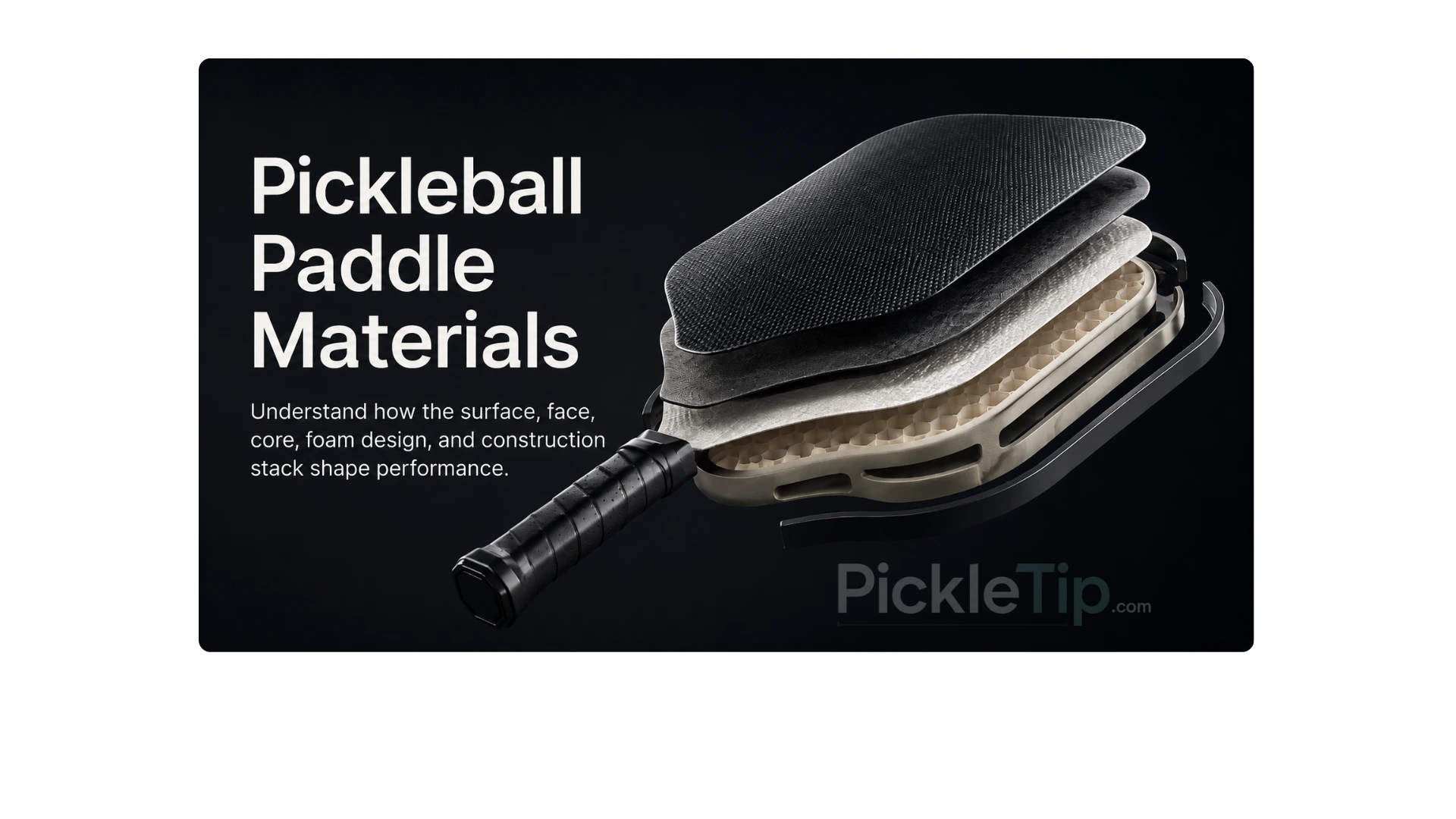

The PickleTip Modern Paddle Construction Stack

The easiest way I know to understand modern paddles is to stop asking, “What material is this?” and start breaking the paddle into layers. I think of this as the PickleTip Construction Stack: surface, face, layup, core, architecture, perimeter, manufacturing, then geometry and mass.

That last row is important. A fantastic material stack can still produce a paddle you hate if the finished shape, swing weight, balance, and response do not fit your game.

I have a clean example sitting in my own review archive. The Rizen Ascent 16mm and Core Pro 4G both use T700 carbon-fiber faces, but they did not feel remotely interchangeable in our testing. The Rizen’s EPP + EVA dual-foam build felt incredibly soft and pocketing-heavy, especially when I was late and trying to settle a hard ball back into the kitchen. The Core Pro 4G felt firm, lively, quick at the net, and most rewarding higher on the face. AJ loved that contact window. I did not fit it as naturally because I tend to defend and guide the ball lower on the face.

Same T700 label. Very different paddle. That is the construction stack in real life.

One limitation is worth saying out loud: unless I cut a paddle open or a manufacturer publishes the internal build, some architecture has to be taken from manufacturer documentation. I can test what the finished paddle does. I cannot pretend I have X-ray vision.

What Pickleball Paddle Face Materials Actually Tell You

Face material still matters. Carbon fiber did not suddenly become irrelevant.

I am changing how much information I think the material name gives you by itself.

Here is where I changed my mind: I would no longer rank these materials with three fire emojis for spin, two for power, one for control, and call the job finished.

The construction has become too varied for that table to be honest.

Paddle Face Material and Paddle Surface Are Not the Same Thing

These two things get lumped together constantly, and they should not.

A paddle may have a carbon-fiber face underneath several very different kinds of surface texture.

• Traditional peel-ply texture
• Applied grit
• Molded or resin-based texture
• Embedded hard particles
• Ceramic or ceramic-like durable-grit systems
• Proprietary textured layers

Those surfaces can have very different spin retention even when the structural face underneath says “carbon fiber.”

That is why I no longer say raw carbon itself is automatically “the king of spin.” The fiber and the surface finish are related, but they are not interchangeable concepts.

USA Pickleball separately tests paddle coefficient of friction and surface roughness. That separation is a useful reminder that the finished hitting surface deserves to be evaluated as its own part of the paddle.

If you want the physics of traction and spin, use my pickleball paddle grit guide. If you want to know which modern textures actually hold their performance, use my 2026 durable-grit and surface-retention guide.

Carbon Fiber: T700, 3K, 12K, 18K, UD, and the Buzzword Problem

Carbon fiber is still one of the most important materials in performance paddles.

But this is also where marketing vocabulary creates the most confusion.

What Does T700 Mean?

T700 identifies a grade/family of carbon fiber. It does not identify the finished paddle texture.

That means “T700” can tell you something about the reinforcing fiber being used, but it does not automatically tell you:

• how rough the finished paddle will be,
• how much spin it will produce,
• how long that spin will last,
• how stiff the finished face will feel,
• or how powerful the paddle will be.

Those outcomes depend on the resin system, surface process, fiber orientation, number of layers, other materials in the layup, core underneath it, and the finished structure.

What Do 3K, 12K, and 18K Mean?

The K-number generally refers to the number of filaments in a carbon-fiber tow. A 3K tow contains fewer filaments than a 12K or 18K tow.

I used to turn that into a simple ladder:

3K = softer, 12K = stiffer, 18K = stiffer and more powerful.

I would not teach it that way anymore.

Tow size changes how a fabric can be built, but the finished laminate determines how the paddle behaves. Resin content, fiber amount, weave, orientation, number of layers, thickness, reinforcement, and core support can outweigh the K-number printed in the product description.

So if two brands advertise 12K carbon, I do not assume they will feel alike.

What Is Unidirectional Carbon?

Unidirectional carbon aligns most fibers along a chosen direction instead of weaving them into a checkerboard fabric.

That gives a designer more control over where reinforcement and stiffness are added within a laminate.

The part I care about is the finished laminate.

A UD layer is normally one part of a multi-layer system. Seeing “UD carbon” does not let me predict the finished paddle without knowing what is around it.

Does a 45° Carbon Layup Automatically Create More Spin?

No. I would not make that claim from fiber orientation alone.

Fiber orientation can change how a composite laminate handles load and twisting. Franklin, for example, uses a T700 peel-ply carbon surface applied at 45 degrees in its C45 family and markets that construction for consistent texture and spin.

But that does not establish a universal rule that every ±45° internal carbon layer produces more ball friction than every 0°/90° layup.

The ball interacts with the finished surface, not the diagram of the fibers hidden underneath it.

Aramid and “Kevlar” Pickleball Paddle Faces

Aramid-fiber faces became a major part of the paddle market because they gave manufacturers another reinforcement system to work with besides conventional carbon and fiberglass.

Players often describe some aramid-faced paddles as plush, muted, or comfortable.

That does not mean aramid itself guarantees those characteristics.

Just like carbon, the finished feel depends on:

• the specific fiber and fabric,
• the number and orientation of layers,
• resin and bonding,
• other reinforcing materials,
• the surface treatment,
• the core underneath it,
• and the finished paddle geometry.

So I no longer recommend a paddle merely because somebody tells me, “It’s Kevlar, so it will be soft.” I want to know what they built with it.

I got a useful face-material comparison from the PBZ Viper Strike Ti vs Kevlar because the two versions share the same basic chassis. In my testing, the Kevlar version gave me more dwell, easier shot shaping, and a slightly calmer reset feel. The Ti version responded more immediately. That does not prove a universal Kevlar rule. It shows what changing one part of a familiar build can do when the rest of the paddle stays closer to constant.

Fiberglass Is Not Automatically Beginner Material

I used to call fiberglass an entry point rather than a final destination. I would not teach it that way now.

Fiberglass can be used as the visible face, as an internal reinforcement layer, or as part of a carbon/fiberglass composite layup.

Some manufacturers deliberately combine fiberglass with carbon because the materials contribute differently to the bending and recovery behavior of the face.

So “contains fiberglass” is not a synonym for cheap anymore than “contains carbon” is a synonym for great.

What About “Titanium” Pickleball Paddle Faces?

This is one label I read very carefully.

Some paddle products use “titanium” language for appearance, trade names, or hybrid synthetic fibers rather than a sheet of structural titanium metal doing the work players may imagine.

I have even had paddle-manufacturing conversations where a material described as a “titanium weave” was clarified as a polyester-based colored fiber rather than titanium metal.

That does not make the material bad.

It makes the ingredient list important.

When a spec sheet gives me a trademark instead of a material name, I keep digging. The trademark may describe a useful technology, but I still want to know what is physically in the paddle and where it sits in the construction stack.

Pickleball Paddle Cores: Where the Real Changes Are Happening

If the face dominated paddle conversations a few years ago, the core is where much of the current engineering fight has moved.

USA Pickleball’s approved-equipment records now include traditional polypropylene honeycomb as well as EPP/EVA foam constructions, which is a pretty good sign that foam is no longer fringe technology.

Polypropylene Honeycomb Is Not Dead

Foam may be getting all the attention, but polypropylene honeycomb is still used in serious modern paddles.

Newer is not automatically better.

Honeycomb gives designers a familiar platform with predictable ways to adjust:

• core thickness,
• cell size,
• face stiffness,
• perimeter reinforcement,
• foam placement,
• and overall mass distribution.

The weakness that drove much of the foam-core movement is that repeated loading can damage or crush honeycomb structures in some constructions.

But that does not mean every honeycomb paddle will crush, and it does not mean every foam paddle is automatically more durable.

Foam-Core Pickleball Paddles: “Foam” Is Now a Category, Not a Material

Foam is where the vocabulary really starts falling apart.

When somebody says “foam-core paddle” in 2026, I immediately want another question answered:

What foam, where, and in what architecture?

CRBN describes TruFoam as a 100% foam core. Selkirk’s PureFoam replaces traditional polypropylene honeycomb with high-density foam. Ronbus Refoam uses MPP foam with strategically placed 3D carbon-fiber lattice segments. Other USA Pickleball-approved paddles use EPP with EVA. All of those can reasonably get called “foam paddles,” but they are not remotely the same architecture.

EPP vs MPP Foam in Pickleball Paddles

EPP: Expanded Polypropylene

EPP is expanded polypropylene foam. In broad terms, it is formed from expanded polypropylene material and can be molded into a durable lightweight core structure.

Current USA Pickleball equipment records include EPP and EPP/EVA constructions, so this is no longer fringe technology.

MPP: Microcellular Polypropylene

MPP is microcellular polypropylene. Ronbus describes its current Refoam construction as MPP produced through supercritical foaming to create very small cellular structures, then combines the foam with carbon-fiber lattice segments.

And the carbon lattice is exactly why calling it an “MPP paddle” does not tell the whole story. You are not simply comparing EPP molecule versus MPP molecule.

You are comparing finished systems that may use:

• different densities,
• different thicknesses,
• different perimeter foams,
• different carbon reinforcement,
• different internal cutouts or voids,
• different faces,
• and different mass distributions.

I have actually tested this one head-to-head. In my Enhance Turbo EPP vs MPP testing, I spent a three-hour outdoor session with the same Franklin X-40 and rotated the lineup through late blocks, rushed counters, resets, and off-center contact. EPP felt firmer and more connected, and I could repeat resets more easily. MPP felt deeper, springier, and more elastic; when I got late in hands exchanges, the miss showed up faster as a ball that carried long or popped up.

That is useful evidence, but I still would not turn it into a law that EPP always equals control and MPP always equals pop. It tells me what happened in that specific family, under the same session and ball, which is much more useful than guessing from the acronyms.

What Is a Floating Core Pickleball Paddle?

“Floating core” describes an architecture, not one specific material.

In a floating design, the primary core is mechanically separated or buffered from part of the surrounding frame/perimeter structure by another material or channel—often foam.

That primary core could be honeycomb, EPP, MPP, or another material depending on the design.

For example, some current manufacturing platforms pair an EPP or MPP central core with an EVA foam channel around it. Other designs have used honeycomb cores isolated from a foam perimeter.

The idea is to let the center of the paddle behave differently from the structure surrounding it.

But “floating” does not automatically mean more power, more control, or better durability. Those are outcomes you still have to test.

Full Foam vs Foam-Enhanced Honeycomb

This is why the phrase “foam infused” can be almost useless without context. Foam around the perimeter of a honeycomb paddle and a 100% foam core are not the same construction.

Even “full foam” does not promise one feel. In my CRBN 3 TruFoam Genesis testing, the 14mm foam build kept off-center hits surprisingly consistent and felt unlike the honeycomb paddles I had been using. In my KBS TruFoam Aurora review, another full-foam T700 paddle felt soft and comfortable but gave up much more stability away from center. Soft is not the same thing as forgiving.

Gen 1, Gen 2, Gen 3, Gen 4: Useful Shorthand, Not Engineering Law

You will hear modern paddles described by generation.

I use those terms too, because they help us talk about broad periods of construction.

But there is no universal engineering standard that forces every manufacturer to use “Gen 3” or “Gen 4” the same way.

I treat that table as a translator, not a specification sheet.

Thermoformed vs Cold-Pressed Pickleball Paddles

I used to summarize thermoforming too categorically:

• thermoformed = dense, powerful, durable;
• cold-pressed = softer, cheaper, less powerful.

Modern construction makes that shortcut unreliable.

Thermoforming describes a manufacturing/bonding process. It does not prescribe one exact paddle feel.

A manufacturer can thermoform different:

• cores,
• face layups,
• foam structures,
• perimeter systems,
• thicknesses,
• and shapes.

Franklin currently uses double thermoforming around a polymer core and inner foam channel in the C45. Other manufacturers thermoform full-foam structures. Meanwhile, Gearbox uses its patented SST carbon-fiber rib structure instead of conventional honeycomb or a standard foam block.

I would not lump those paddles together just because heat and pressure were involved during manufacturing.

Perimeter Foam, Carbon Frames, Lattices, and Other Hidden Materials

A lot of modern paddle engineering happens where you cannot see it.

Perimeter Foam

Foam placed around a honeycomb core can add mass, support the edge, change vibration, and influence how consistent the paddle feels away from center.

JOOLA uses a Hyperfoam edge wall around honeycomb-based Propulsion Core designs. Franklin also uses internal foam channels around polymer cores in its C45 platform.

Carbon Frames

Carbon reinforcement around the perimeter can change structural rigidity and load distribution without changing the material in the center of the paddle.

Carbon Lattices

Ronbus currently combines MPP foam with strategically positioned 3D carbon-fiber lattice segments.

That is a good example of why “MPP paddle” is incomplete. The MPP is only one component of the architecture.

Carbon Rib Cores

Gearbox demonstrates an entirely different path. Its SSTCore uses parallel carbon-fiber ribs as the structural core rather than a conventional polypropylene honeycomb or standard full-foam block.

That single example is enough to kill the idea that modern paddles can be understood with a two-column “honeycomb vs foam” chart.

What Materials Affect Power, Control, Spin, and Feel?

All of them—and none of them in isolation.

That is why I do not put much stock in blanket statements like “Kevlar is a control material” or “MPP is a power material.” They may describe one paddle accurately. They are not material laws.

How Core Material Changes Paddle Feel Under Pressure

A paddle can feel wonderful during cooperative dinking and completely different when somebody attacks it. That is one reason core architecture matters.

Different structures can change how the face is supported as impact load rises. A soft-feeling paddle at low impact does not necessarily stay equally soft or equally predictable on a hard counter.

That is why my testing gets less polite once I understand the build. I block hard drives, take rushed counters, reset when my feet are late, hit outside the sweet spot, and watch where the first expensive miss appears. In my 11SIX24 Ultre Power 2 testing, for example, the foam core gave me enough catch-and-release against a hard drive to absorb pace and put the ball back down, but the more interesting part was what happened with court time: the face softened slightly, the response felt more connected, and resets and controlled drops became easier for me to predict.

I go deeper on what happens when pace and impact load rise in my foam-core paddle feel under pressure guide.

Why Paddle Material Does Not Predict Dwell Time

You will see a lot of material descriptions promise “more dwell.”

Maybe.

But the useful question is whether the finished paddle system produces contact behavior that helps you control the ball.

I separate measured contact time from the player’s sensation of pocketing in my pickleball paddle dwell-time guide.

How I Read a Modern Pickleball Paddle Spec Sheet

If I am evaluating a paddle I have never touched, I read the specifications in roughly this order. The spec sheet gets me to the court; it does not get to make the final decision.

1. What is the actual core material? Honeycomb? EPP? MPP? EVA combination? Proprietary foam? Carbon ribs?
2. What is the core architecture? Conventional, full foam, floating, multi-density, lattice-reinforced, perimeter-foam?
3. What is the face layup? Carbon, aramid, fiberglass, or a combination?
4. What is the finished surface? Peel ply? Applied grit? Embedded/engineered durable texture?
5. How is the perimeter built? Foam, carbon frame, edge wall, molded structure?
6. How was it manufactured? Thermoformed, cold-pressed, molded, multi-stage?
7. What are the actual mass properties? Static weight, swing weight, twist weight, and balance matter enormously.
8. What is the shape and thickness? Those change leverage, maneuverability, stability, and contact behavior.
9. Is the performance legal for how I plan to use it? Current certification belongs on the governing body’s equipment list, not in a permanent marketing claim.
10. Then I hit balls.

Number ten is still the most important.

A material list can help me predict what questions to ask.

It does not get to answer them before the paddle touches a ball.

How I Compare Two Paddle Constructions

Instead of saying:

“Paddle A is Kevlar and Paddle B is T700, therefore A has more control and B has more spin.”

I would compare them like this:

Now I know what I actually need to test, and I have stopped asking one marketing noun to explain an entire paddle.

Four Paddle Material Claims I Do Not Trust Anymore

Myth: T700 Means Maximum Spin

Reality: T700 identifies reinforcing carbon fiber. Spin depends heavily on the finished surface and the whole paddle/ball interaction.

Myth: Kevlar Is Automatically Soft

Reality: My PBZ Ti-versus-Kevlar testing showed a calmer, more shaping-friendly Kevlar response on that chassis, but that is a paddle result—not a law of aramid fiber.

Myth: Foam Cores All Feel the Same

Reality: My Enhance Turbo EPP/MPP session produced two different miss profiles under the same ball and conditions, and my full-foam CRBN and KBS testing produced very different off-center stability. “Foam” is nowhere near specific enough anymore.

Myth: Gen 4 Automatically Means Better

Reality: Generation labels describe broad construction trends. They do not guarantee fit, performance, durability, or quality.

How to Choose a Paddle Without Buying the Marketing

I would not choose a paddle from a material chart anymore.

I would use materials to narrow what I want to test.

Then I test the finished paddle using the same philosophy described in how PickleTip tests pickleball paddles. I care about what survives when contact gets ugly: block depth, reset height, counter control, hand speed, off-center stability, and whether the paddle makes my normal miss more expensive.

Measurements are translators, not judges. Materials work the same way.

Pickleball Paddle Materials FAQs

Stop Buying the Ingredient List

The paddle industry did not get simpler. It got more interesting. Carbon, aramid, EPP, MPP, EVA, honeycomb, foam channels, carbon frames, lattices, rib structures, durable surfaces, and manufacturing methods all matter. They just do not get to explain a paddle by themselves.

The mistake is seeing one impressive material name and assuming the rest of the paddle has already been explained.

Once I understand the construction, I stop staring at the ingredient list and start testing what matters: what happens when pace goes up, contact gets late, I miss the sweet spot, or the paddle has enough court time on it to start changing. That is the job of the PickleTip paddle testing methodology. If you are still deciding how equipment fits into the rest of your game, use the PickleTip equipment guide as the broader starting point.

If you are comparing actual finished paddles instead of construction theory, head to the PickleTip paddle reviews.
